Home » Products » Ultraviolet Sterilizers » Air Sterilizing System

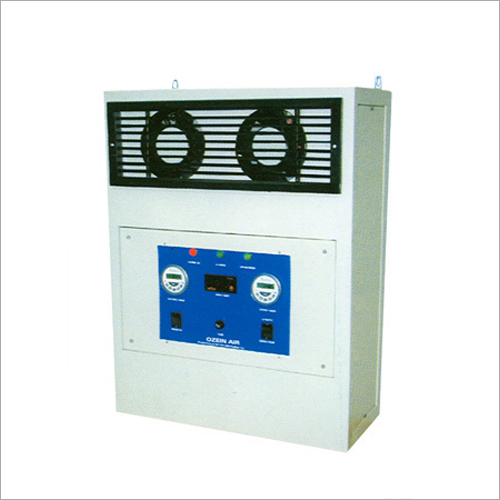

Air Sterilizing System

Air Sterilizing System
Air Sterilizing System
Product Code : 05
Brand Name : S. S. TECHNO MED
Product Description

We are the most trusted name engaged in manufacturing, exporting and supplying CE certified Air Sterilizing System. This system is widely used for purifying and sterilizing air that helps in preventing airborne infections in hospitals, health care units, diagnosis rooms and many more. The offered system is manufactured at our advanced manufacturing unit by making use of quality tested raw material under the supervision of our adept professionals. Further, our provided system is made available in varied specifications for meeting the varied needs of our clients. Our clients can purchase this Air Sterilizing System from us at affordable prices.


  • Dust Filter

  • Secondary Filter

  • Activated Carbon Filter

  • UV Filter

  • Negative Ion Generator

  • Hepa Filter

  • Electrostatic Precipitator

  • Ozonation system

Air Purification Cum Sterilization System:

  • Eight Steps of Air Sterilization:

  • Stage-1: Dust filter trops particles upto 15 microns. This includes dust particles, hair, lint fibers, insects and other particulate substances above 15 micron.

  • Stage-2: Secondary filter trops particles up to 5 micron size such as fine dust particles, pollen grains etc.

  • Stage-3: Activated carbon filter removes odors, fumes, inorganic substances such as No2 and CO and organic compounds such as formaldehyde and fumes of hologens and other chemicals. Activated Carbon adsorbs particles from air.

  • Stage-4: UV rays (2537Ao or 253.7mm) kill microbial cells present in air by destroying their genetic material with an efficiency of 90-90%.

  • Stage-5: A Digital Negative Ion Generator is another excellent feature which ultimately leads to better air quality Negative Ions get attached to dust particles / pollutants making them heavier and precipitate them on the floor. This leads to cleaner air.

  • Stage-6: Hepo Filter traps all biotic and abiotic particles known to be presenting the air, 0.3 micron porosity of the filter results in 99.97% efficiency. Only pure air passes through this porosity.

  • Stage-7: Electrostatic precipitator, a wonderful feature, high D.C. current which attracts and retains all the pollutants of air that pass through it.

  • Stage-8: Ozonation system with a programmable digital timer. Ozone sterilizes air by xoidation of inorganic and organic substances. 99.9% of bio contaminants are killed and eliminated by Ozone.

  • When the system is producing Ozone (Stage-7) then Stage-4, 5 & 6 are automatically switched off and vice-versa.

Technical Specifications:

28" x 21" x 10"
Gross Weight 22 kg (Approx.)
Voltage Required
230 V AC, 50 Hz
Area Recommended
up to 4000 Cubic feet
Digital Timers
Two (for mains and Ozone)
